Description

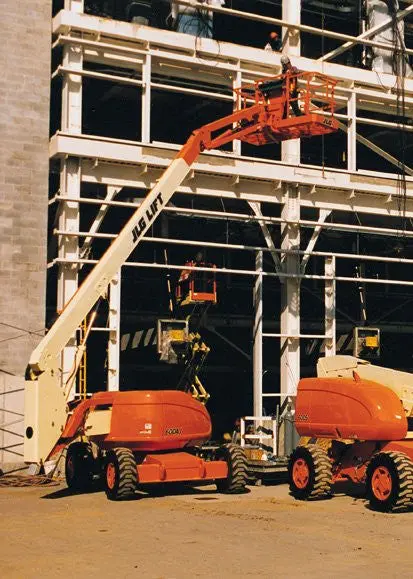

Boom Lift w/7500 watt Generator, 60 ft
60′ Articulating boom lift with SkyPower® Package – Includes 7500W generator, power cable to platform, and ½ in. airline to platform
Articulating boom lifts (knuckle booms) are used for reaching up and over machinery, equipment, and other obstacles mounted on floors, and for reaching other elevated positions not easily approached by a straight (telescopic) boom lift. The machine’s turntable may be rotated 360 degrees in either direction. The boom can be raised or lowered from vertical to below horizontal, and extended (telescoped) while the work platform remains horizontal and stable. It can be maneuvered forward or backward and steered in any direction by the operator from the work platform, even while the basket is elevated. All articulating models are driveable at full elevation and have chassis widths that provide access to narrow industrial aisleways and congested work areas. Easy to use platform controls for reduced operator training time. Advanced boom design provides optimal reach envelope with zero tailswing. Easy access swing-out engine tray. Optional oscillating axle and four-wheel drive for superior traction Platform capacity of up to 1,000 lb (450 kg).
SPECIFICATIONS
Make:JLG
Model:600A Skypower
CONTINUOUS WATT: 7500W
FUEL: Diesel
FUEL TANK: 30 Gal
GRADABILITY: 30%
GROSS VEHICLE WEIGHT: 24,000 lbs
GROUND-CLEARANCE: 12 in
HEIGHT STOWED: 8 ft. 5 in.
HORIZONTAL OUTREACH: 39 ft. 7 in.
LENGTH STOWED: 26 ft. 5 in.
LIFT CAPACITY MAX: 1000 lbs.
LIFT CAPACITY MAX HEIGHT: 500 lbs.
LIFT CAPACITY MAX REACH: 500 lbs.
MAX. WATTS: 7500
PLATFORM CAPACITY: 500 lbs.
PLATFORM HEIGHT: 60 ft.
PLATFORM SIZE: 36 x 72 in.
PLATFORM-WEIGHT-CAP-RESTRICTD: 1000 lbs.
PLATFORM-WEIGHT-CAP-UN-RESTRICTD: 500 lbs.
WEIGHT: 24,0000 lbs
WHEEL BASE: 8 ft.
